Konzeption und Umsetzung eines Ansatzes zur Identifikation von Antipattern in Microservice-Architekturen

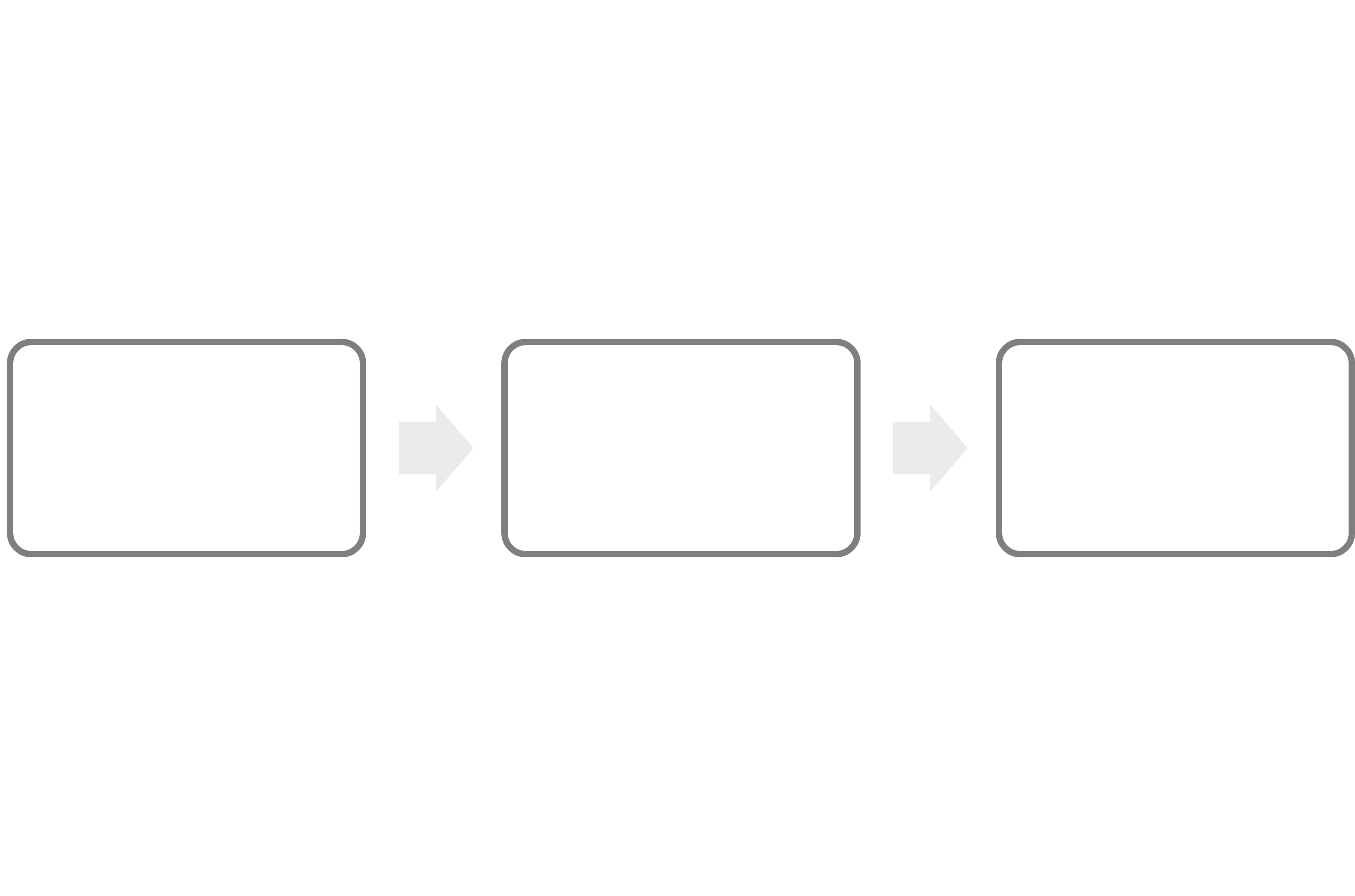

Agenda

1. Antipattern
2. Erweiterung LEMMA
3. Proof of Work
4. Ausblick

Dokument

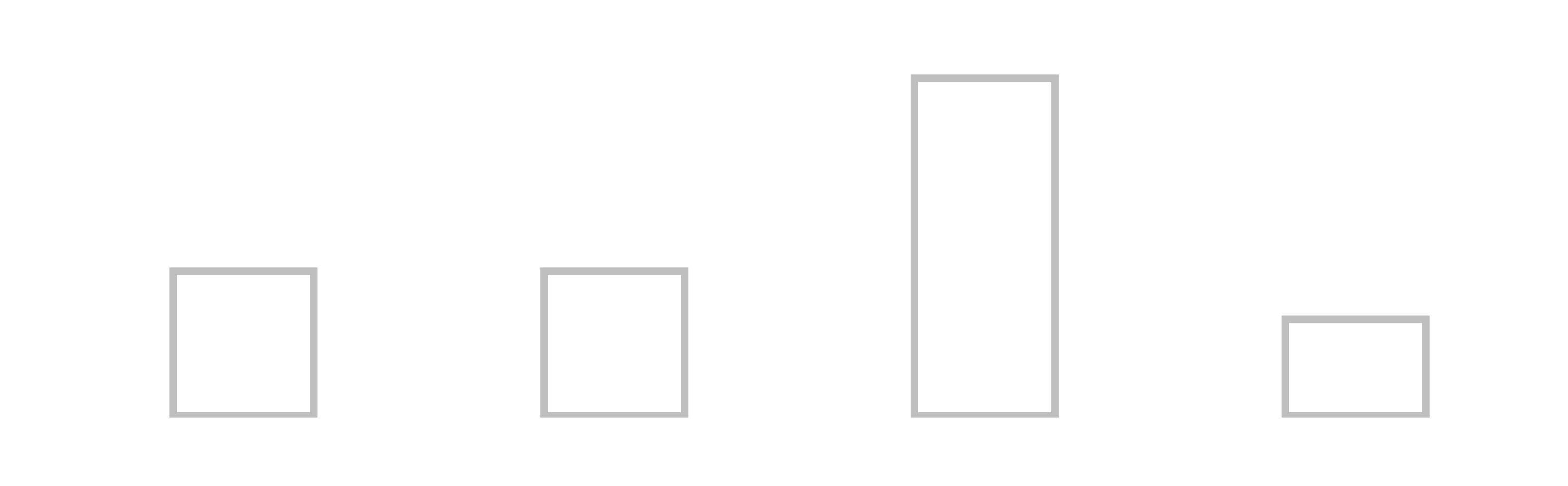

Antipattern

VODY

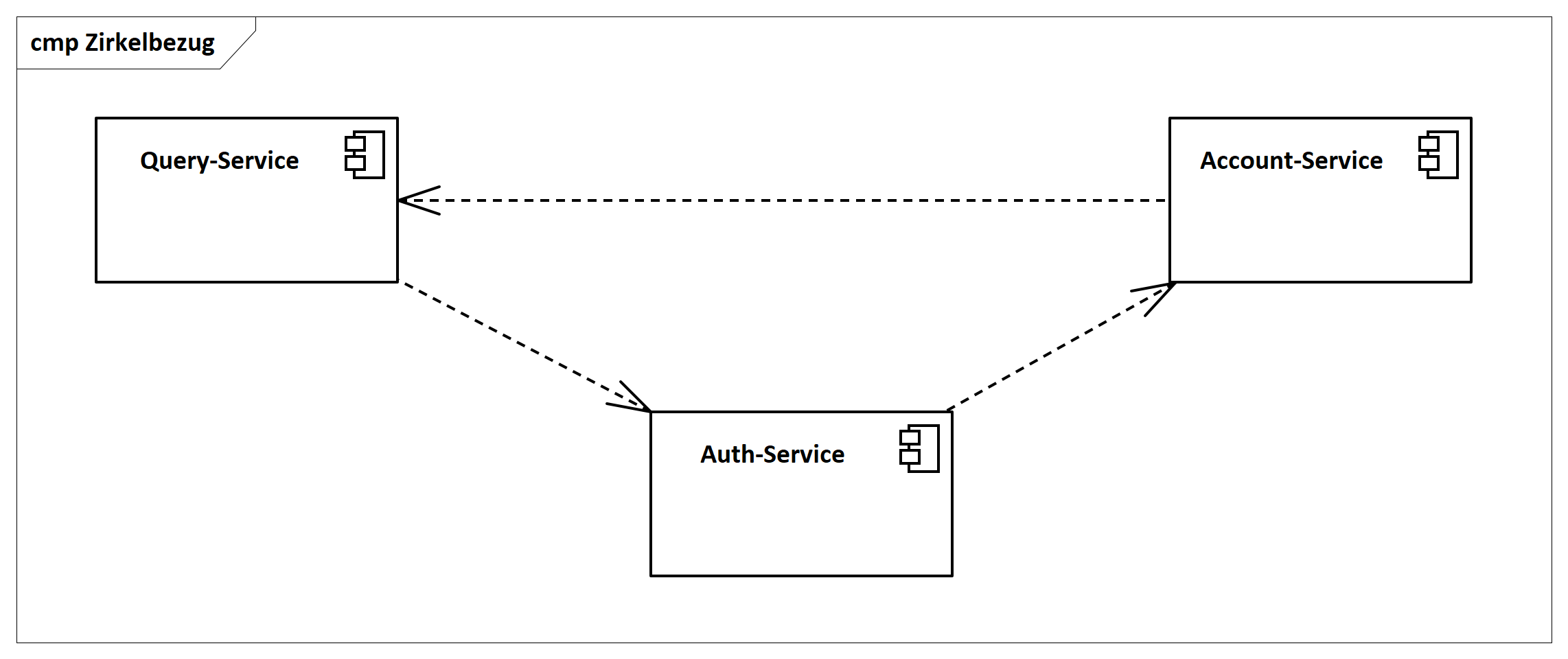

Zirkelbezug

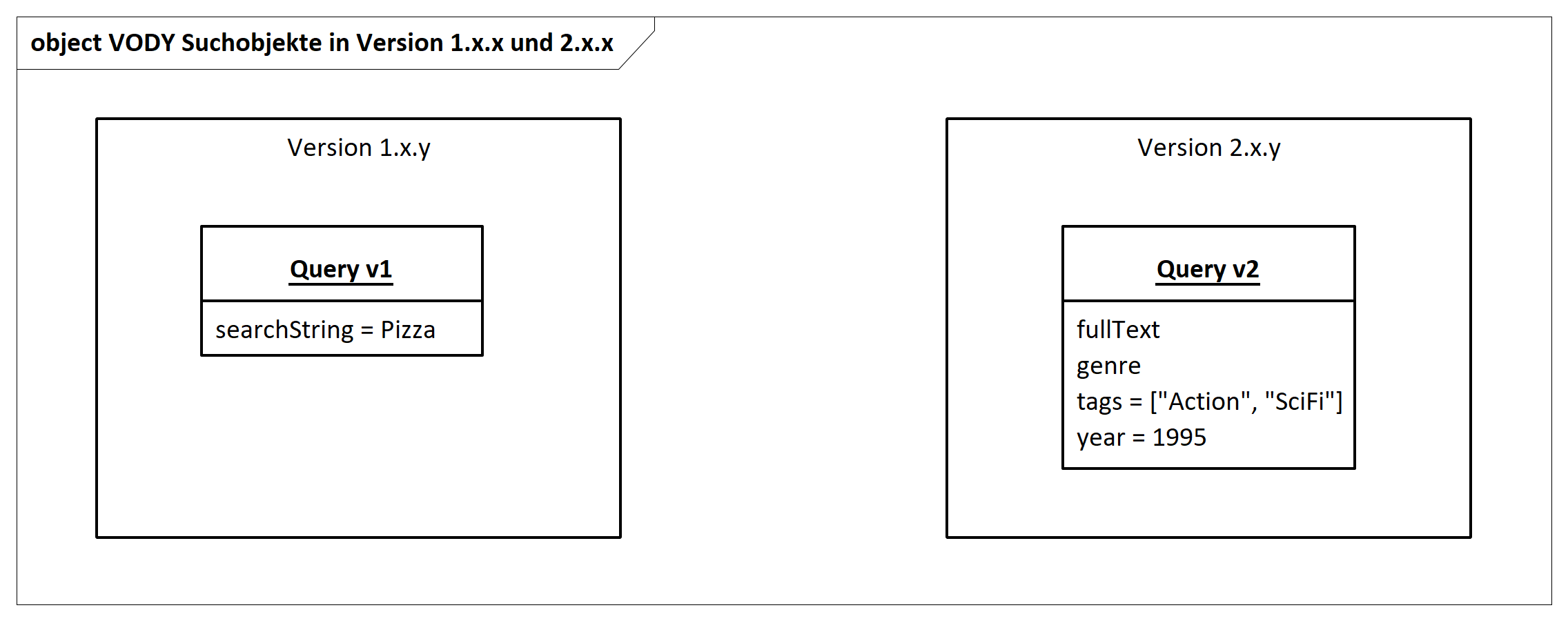

Versionierung

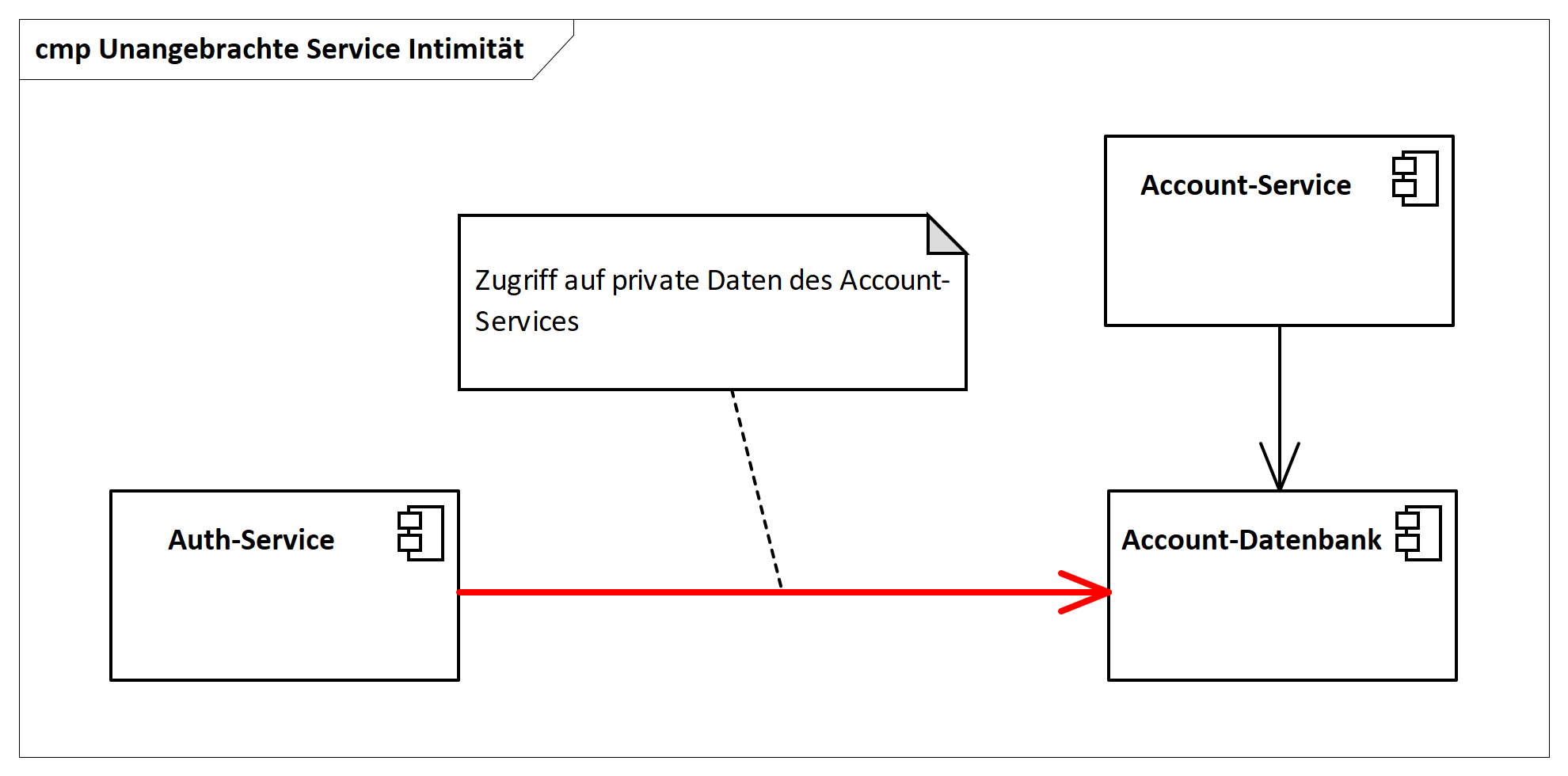

Service Intimität

Größenordnung

• Größe
• Komplexität
• Technologievielfalt
• ...

Anpassungen

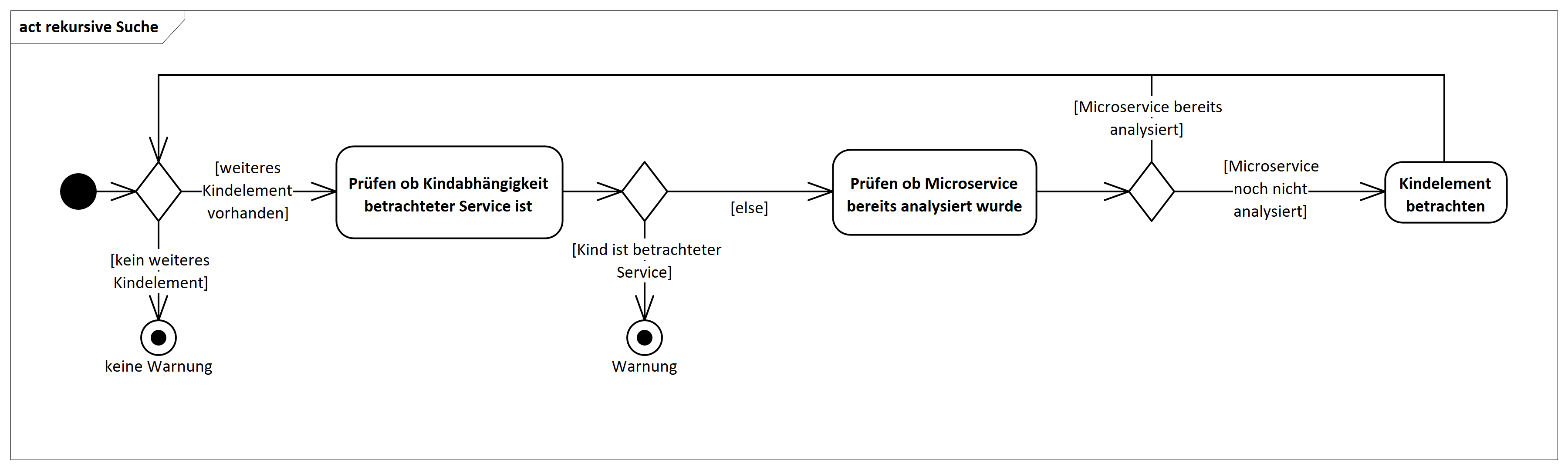

Kategorisierung

							enum class AntipatternType(val displayName: String) {
								API_VERSIONING("API-Versioning"),
								CYCLIC_DEPENDENCY("Cyclic Dependencies"),
								USAGE_ESB("Usage Enterprise Service Bus"),
								HARDCODED_ENDPOINTS("Hardcoded Endpoints"),
								NO_API_GATEWAY("No API-Gateway"),
								SHARED_PERSISTENCE("Shared Persistence"),
								LOCAL_LOGGING("Local Logging"),
								NO_MONITORING("Missing Monitoring"),
							}

							data class Antipattern(
								val type: AntipatternType,
								val message: String)

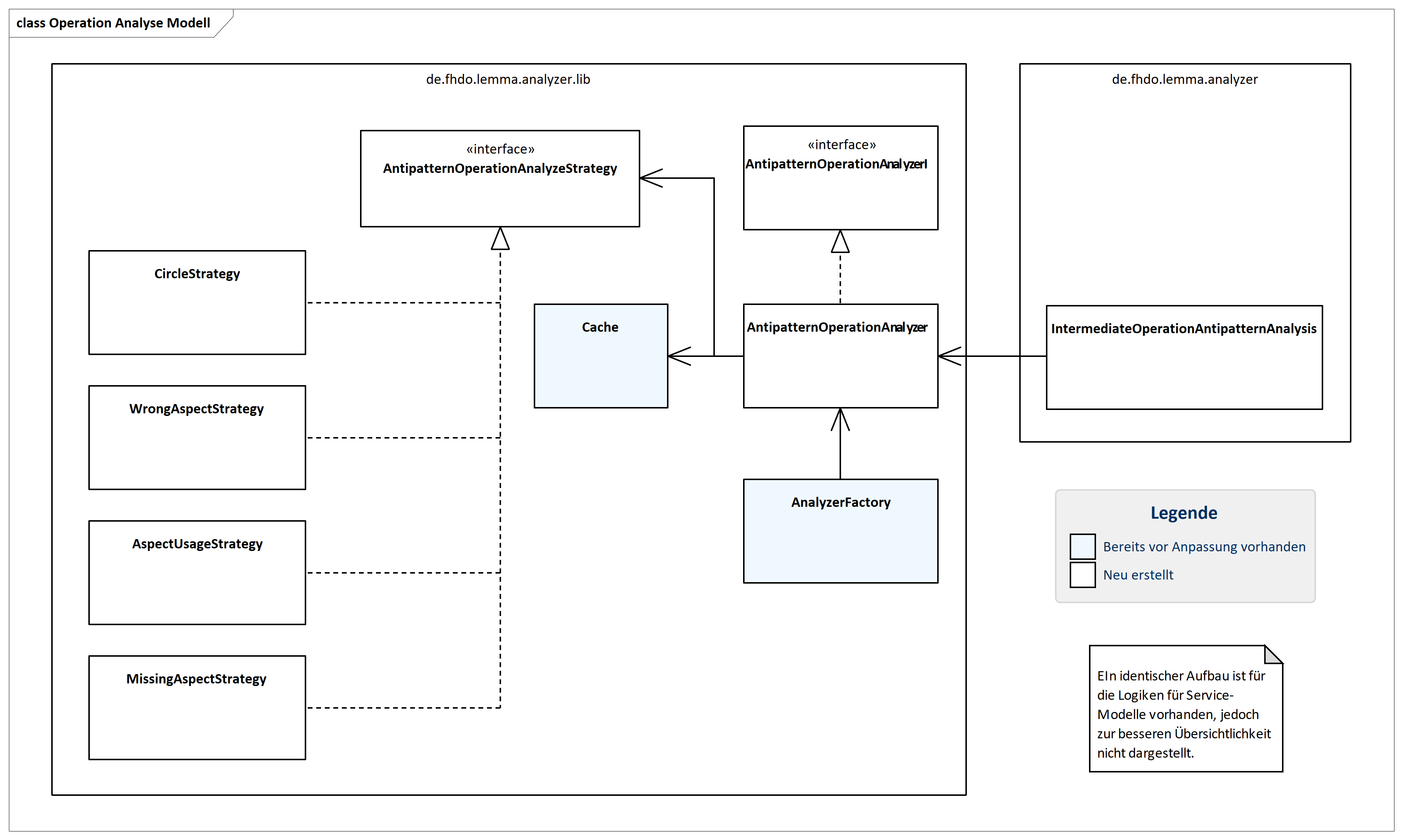

							interface AntipatternOperationAnalyzerStrategy {
								fun analyzeOperationNodes
									(nodes: Iterable<IntermediateOperationNode>):
										Collection<Antipattern>
							}


							interface AntipatternServiceAnalyzerStrategy {
								fun analyzeOperationNodes
									(microservices: Iterable<IntermediateMicroservice>):
									Collection<Antipattern>
							}


							private var strategies = setOf(
								CircleStrategy(),
								WrongAspectStrategy("ESB", AntipatternType.USAGE_ESB, "Using an 'Enterprise Service Bus' can make a solution too complex"),
								MissingAspectStrategy("ServiceDiscovery", AntipatternType.HARDCODED_ENDPOINTS, "A service discovery should be used"),
								AspectUsageStrategy("Database", AntipatternType.SHARED_PERSISTENCE, "Only one Service should access a data storage. In case of data separation, like different tables this can be ignored"),
								MissingAspectStrategy("LogServer", AntipatternType.LOCAL_LOGGING, "Log-Data should be stored central"),
								MissingAspectStrategy("Monitoring", AntipatternType.NO_MONITORING, "Services should be monitored central"),
								MissingAspectStrategy("API-Gateway", AntipatternType.NO_API_GATEWAY, "Although the service has endpoints no API-Gateway is connected", true)
							)


							override fun checkExistingAntipattern(): Collection{
								val allInfrastuctureNodes = Cache.allInfrastuctureNodes()
								val allContainer = Cache.allContainer()
								val operationNodes = mutableListOf()
								operationNodes.addAll(allContainer)
								operationNodes.addAll(allInfrastuctureNodes)
								val result = mutableListOf()
								strategies.forEach { result.addAll(it.analyzeOperationNodes(operationNodes)) }
								return result
							}


Proof of Work

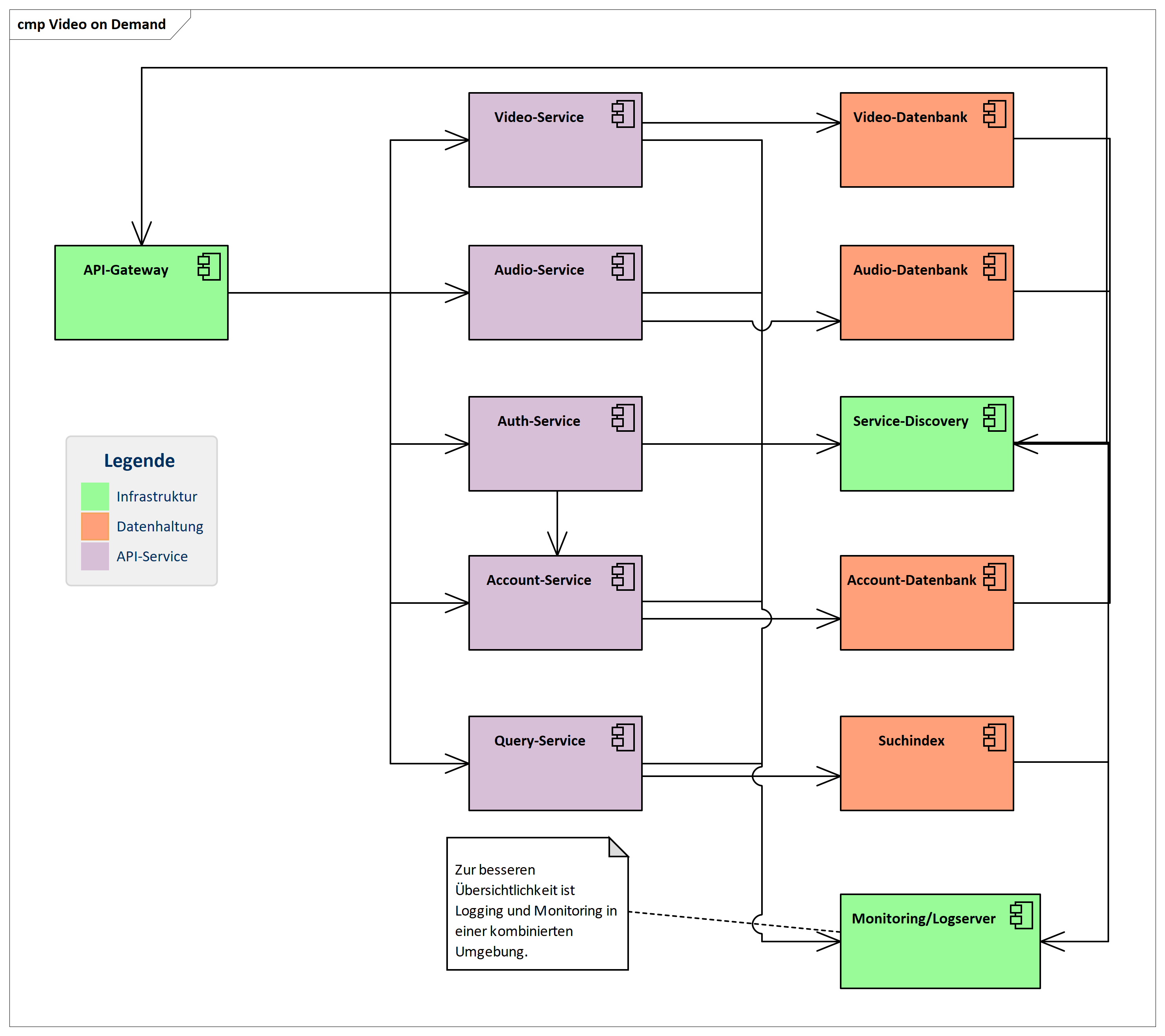

Analyse von VODY

Livedemo

Backup

							*************************************************************
							Antipattern analysis result - Type: Service
							*************************************************************
							No potential antipatterns identified. Everything seems to be clean.


Backup

							*************************************************************
							Antipattern analysis result - Type: Operation
							*************************************************************
							Disclaimer: Identified Antipattern are not always bad practices, but can be a hint!
							~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
							Statistic - Identified antipatterns
							~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
							Hardcoded Endpoints:	 1

							~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
							List - All identified antipatterns
							~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
							Hardcoded Endpoints:	 A service discovery should be used. Object MonitoringAndLogging has no connection to a Operation-Node with ArchitecturePattern-Aspect and name 'ServiceDiscovery'


Fazit/Ausblick

							technology Foo{
								// ...
								operation aspects {
									aspect ArchitecturePattern for infrastructure{
										string name <mandatory>;
									}
								}
							}


Zum Abschluss

Pull Request
